Multihead Weigher and Pre-made Bag Packing System

119999

产品详情

Multihead Weigher and Pre-made Bag Packing System

VFFS packing and weighing.jpg

NO.	Machine Name
1	Vibrator Feeder
2	Z-Type Bucket Conveyor
3	Multihead Weigher
4	Working Platform
5	Vertical Form Fill Seal Machine
6	Output Conveyor
Optional Equipment	Check Weigher
	Metal Detector
	Rotary Table
	Nitrogen Generator

Specifications

Model	HS-H10V42
System Name	Multihead Weigher+VFFS Packaging Machine
Application	Granular product
Weighing Range	10-5000g
Weighing Accuracy	±0.1-2g
Packing Speed	30-50BPM(Standard);50-70BPM(Double Servo);70-120BPM(Continuous sealing)
Bag Size	W:50-500mm;L:80-800mm(Depends on VFFS Model)
Type of pack	Pillow Bag,Gusseted Bag,Quad Bag
Packing Material	Laminated film or PE film
Weighing Method	Load cell
Control Panel	7" or 10" Touch Screen
Power Supply	6KW
Air Consumption	1.5m³/min
Voltage	220V,50/60HZ,Single Phase
Packing Size	1*20'GP
Net/Gross Weight	2500/2800KG

Reminder:The actual speed and accuracy depend on product features.

Working Procedure

Materials should be filled on the vibrator feeder then be lifted by Z type bucket converyor to the top on the multihead weigher.
The multihead weigher will automatic weighing according to preset tart weight.
Target weight product drop into the bag former of VFFS machine where the packing film will be formed and sealed.
Finish package will be delivered to check weigher where unqualified weight will be rejected while the qualified will pass to metal detector.
The package with metal contaminant will be rejected when go through the metal detector. The qualified package will be allowed to get through and be collected by rotary table.
Workers will pick the packages from rotary table and put into paper carton or other outer packages.

Features

The full set of packing equipment is fully automatic operating from material feeding, weighing, filling and bag-making, date-printing to finished product output.
High weighing precision, high production capacity.
In any condition the door is opened, the VFFS machine will stop running and alam to ensure safety.
Film in roller can be locked and unlocked by air. It's convenient for replacement of the film.

Our Company

Zhongshan Hisoon Packaging Machinery Co., Ltd is a Hi-tech enterprise which focus on researching, developing, designing, manufacturing and selling of automatic weighing and packing equipment.

Hisoonpack products cover various Automatic Elevator and Coveyor, Multihead weigher, Linear Scale, Auger Dozer, Vertical Packaging Machine, Rotary Pouch Machine, Horizontal Doybag Machine, Check Weigher, Metal Detector, Labeling Machine, High Speed Carton Erector and Sealing Machine.

Based on rich experience on automatic packing industry, our team of engineer can design and offer tailor-made project from producing line layout, manufacturing, commissioning and training to after sale service.

Our automatic packing machine can be widely used in fields of food, pharmaceutical, spice, forage, pet food, chemicals, hardware etc. With high quality control, we export machines to worldwide over 30 countries.

We always follow the principle of our company philosophy Tailored Designing, Professional Manufacturing, Devoting to Innovation, Striving For Excellence to create more benefits for our customer.

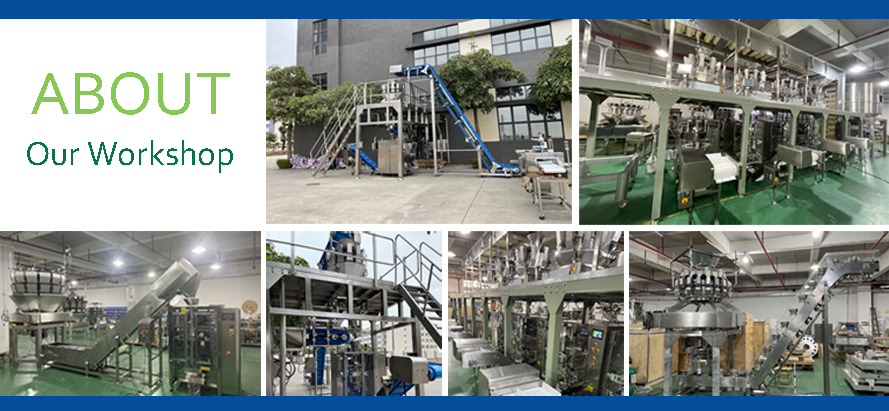

Our Workshop

Hisoonpack (1).jpg
