Z408

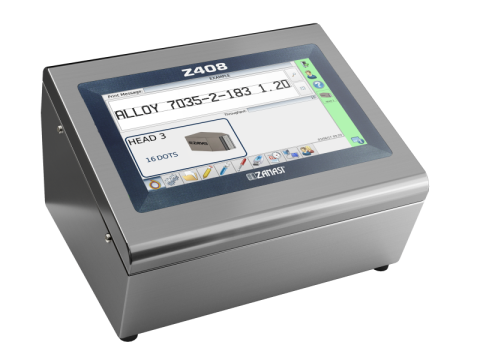

Z408 Large Character Inkjet Printer

[Application]
The Z408 is ZANASI’s top-tier DOD printer designed for industrial-grade, high-speed, large character printing. It excels in printing batch codes, logos, barcodes, and product information directly on cardboard boxes, woven sacks, plastic containers, tubes, metal sheets, and more. It supports up to 10 printing lines and character heights from 5 mm to 190 mm.

[Style]
• Rugged structure: Made entirely of AISI 304 stainless steel, with improved IP protection
• Intuitive use: 10.1” full-color LED touchscreen with drag-and-drop GUI
• Multi-user system: Customizable roles, multilingual support, multi-level login
• Modular and scalable: Up to 4 printheads (7-, 16-, 32-, or 48-dot), independently configurable
• Unified software: Orkestra® platform with remote control, print preview, and data export

[Key Advantages]
Maximum reliability: Built for harsh industrial environments using high-efficiency solenoid tech.
Flexible printing: From 5 mm to 190 mm height, with mirrored, rotated, or tower text layout.
User-friendly: Visual editing with barcodes, text, and graphics; training reduced via built-in help.
Smart integration: Interfaces via RS232, LAN, USB, and configurable I/O for ERP/PLC integration.
Full reporting: Real-time counts, ink usage alarms, print dimension checks, and .CSV data export.
Dot-by-dot calibration and cleaning: Minimizes downtime, increases printhead performance.
Ink compatibility: Works with water-, MEK-, and alcohol-based inks, including food-grade options.
